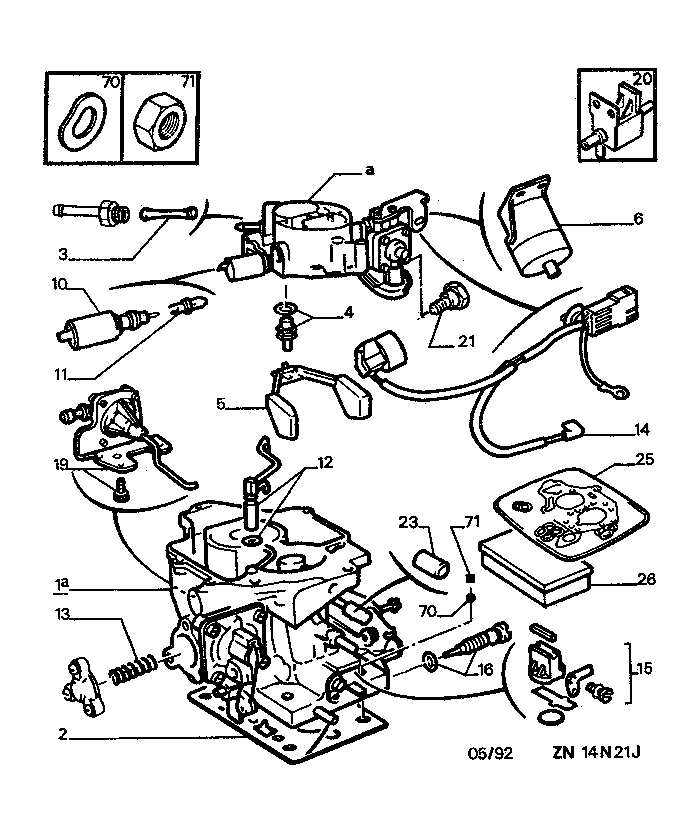

| GB | 405N 1 14N21J | CARBURETTOR DETAIL INJECTION BODY |
CARBURETTOR TU3-2
| 01 | 1401 D1 | 01 | CARBURETTOR |
| RP 1401 G0 | 01 |
SOLEX 32-34 Z2 REP 528/4 SOLEX 32-34Z2 REP 528/4 |
|
 | |||
| 02 | 1416 F4 | 01 | FLANGE SPACER EP 3,5 |
| | |||
| 03 | 1403 B4 | 01 | PETROL FILTER |
| | |||
| 04 | 1433 55 | 01 | CARB NEEDL VALV |
| | |||
| 05 | 1433 56 | 01 | CARBURETR FLOAT |
| | |||
| 06 | 1403 F3 | 01 |
CARB CAPACITY
SOLEX |
| | |||
| 10 | 1404 98 | 01 |
PILOT CUT-OUT
SOLEX |
| | |||
| 11 | 1410 C0 | 01 |
SOCKET TOOL 41 - 45 |
| | |||
| 1410 A9 | 01 | 46 - 50 | |
| | |||
| 12 | 1409 F8 | 01 | PUMP INJECTOR |
| | |||
| 13 | 1413 A7 | 01 | DIAPHRAG.SPRING |
| | |||
| 14 | 1433 A9 | 01 | ASSY CONNS CARB |
| | |||
| 15 | 1418 29 | 01 | CARB.REHEATER |
| | |||
| 16 | 1412 E2 | 01 | MIXTURE SCREW |
| | |||
| 19 | 1408 E3 | 01 |
OPENING DEV ASY
- AIR CONDITIONING |
| | |||
| 20 | 1628 L9 | 01 |
ELECTRO VALVE
EATON - AIR CONDITIONING CONNECTOR BLUE |
| | |||
| 1621 60 | 01 | ||
| RP 1621 89 | 01 |
- AIR CONDITIONING CONNECTOR BLACK |
|
| | |||
| 21 | 1411 03 | 01 | SHAFT SCREW |
| | |||
| 23 | 1624 60 | 01 | PLUG 4,3X9,3-20 |
| | |||
| 25 | 1417 N4 | 01 | CARB GASKET KIT |
| | |||
| 26 | 1417 N5 | 01 | CARB REPAIR KIT |
| | |||
| 70 | 6962 12 | 04 | FLEXIBLE WASHER 7X13,7-0,8 |
| | |||
| 71 | 6932 05 | 04 | HEXAGONAL NUT 7X100-5 |
