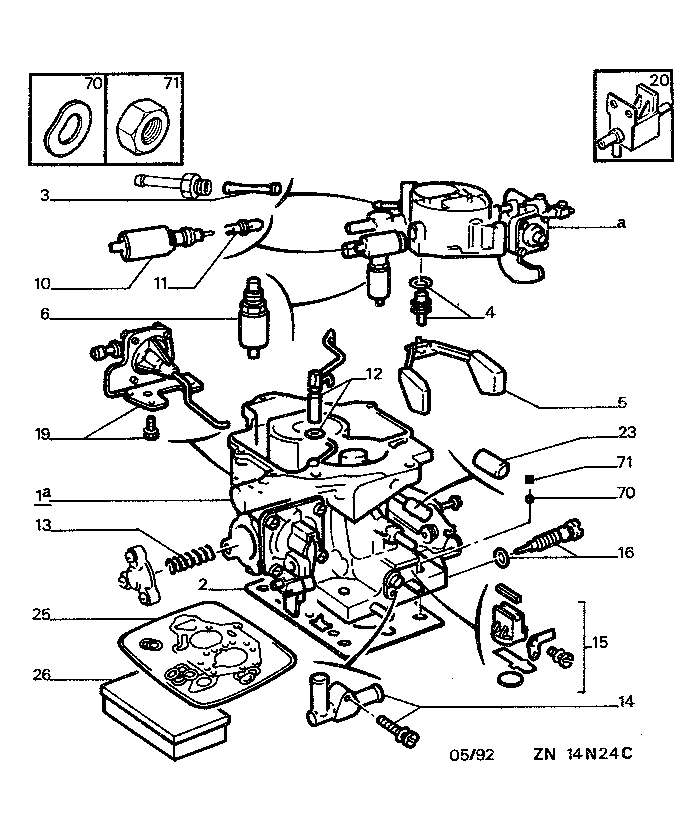

GB   405N 1 14N24C CARBURETTOR DETAIL INJECTION BODY

SOLEX CARBURETTOR XU52C LOW COMP RATIO

01 1400 T2 01 CARBURETTOR SOLEX 34-34 Z2 REP 466 SOLEX *34-34 Z2 REP 469 SOLEX 32-34 Z2 REP 469 02 1416 F2 01 SPACER EP 3,5 03 1403 B4 01 PETROL FILTER 04 1433 55 01 CARB NEEDL VALV 05 1433 56 01 CARBURETR FLOAT 06 1404 A2 01 ELECTRO-VALVE SOLEX 10 1404 98 01 PILOT CUT-OUT SOLEX 11 1410 C0 01 SOCKET TOOL 41 - 45   1410 A9 01 46 - 50 12 1409 F6 01 PUMP INJECTOR 13 1413 A6 01 DIAPHRAG.SPRING 14 1433 50 01 REHEATING UNIT SOLEX 15 1418 29 01 CARB.REHEATER 16 1412 E2 01 MIXTURE SCREW 19 1408 E3 01 OPENING DEV ASY - AIR CONDITIONING 20 1628 L9 01 ELECTRO VALVE EATON - AIR CONDITIONING CONNECTOR BLUE   1621 60 01   RP 1621 89 01 - AIR CONDITIONING CONNECTOR BLACK 23 1624 60 01 PLUG 4,3X9,3-20 25 1417 N4 01 CARB GASKET KIT CONNECTOR BLACK 26 1417 N5 01 CARB REPAIR KIT ADDITIONNAL 70 6962 12 04 FLEXIBLE WASHER 7X13,7-0,8 71 6932 05 04 HEXAGONAL NUT 7X100-5
