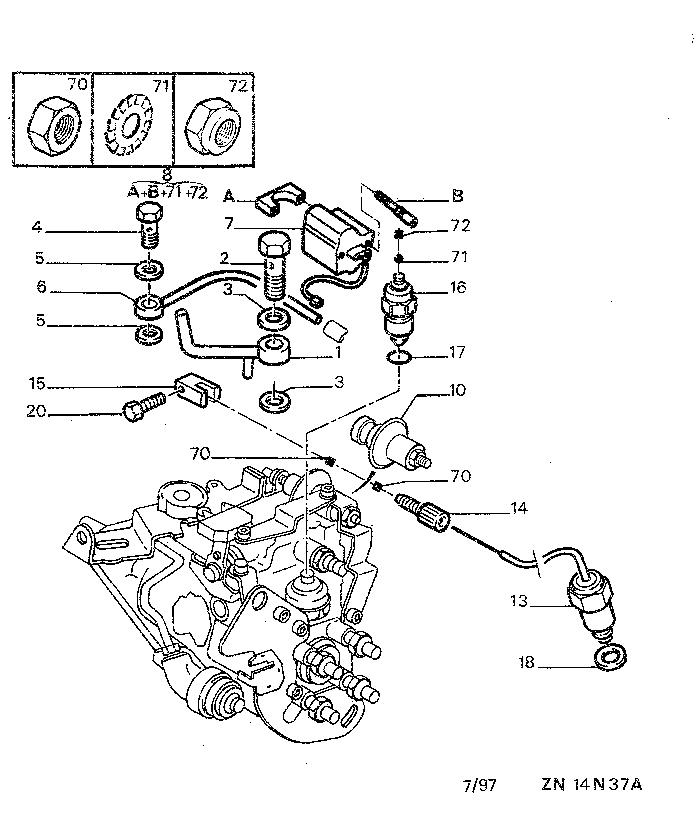

| GB | 405N 1 14N37A | INJECTION PUMP DETAIL ELECTRO VALVE |
| 01 | 1557 A8 | 01 |
ADJUSTABL UNION 6,5X8,5-59 - DEPOL CEE 19-5 UP TO 06/1995 OUTLET - DEPOL US 87 UP TO 06/1994 |
 | |||
| 1563 E9 | 01 |
6,5X8-3,35X4,75
- DEPOL CEE 95 SINCE 06/1994 - DEPOL CEE 19-5 SINCE 06/1995 |
|
| | |||
| 02 | 1563 58 | 01 | SCREW SOCKET |
| | |||
| 03 | 0157 14 | 01 | PLUG SEAL DIAM 12,7X19-1,5 |
| | |||
| 04 | 1563 C5 | 01 | UNION-SCREW 12X150-24 |
| | |||
| 05 | 1933 14 | 02 |
FUEL PIPE SEAL 12,1X18-2
C002 COPPER |
| | |||
| 06 | 1563 C7 | 01 |
ADJUSTABL UNION 6,5X8-82
INLET |
| | |||
| 07 | 1680 63 | 01 | ANTI-START KIT |
| | |||
| 08 | 1680 64 | 01 | FIXING KIT |
| | |||
| 10 | 1563 F9 | 01 | DASH-POT LEVER |
| | |||
| 13 | 1647 52 | 01 | IDLE CONTROL 22X150-LG 431 |
| RP 1647 62 | 01 |
DAUPHIN THOMSON VERNET JA RED |
|
| | |||
| 14 | 1647 34 | 01 | ADJUSTMT SCREW |
| | |||
| 15 | 1664 H3 | 01 | CABLE CLAMP |
| | |||
| 16 | 1680 61 | 01 | ELECTRO VALVE 12V |
| RP 1680 95 | 01 | ||
| | |||
| 17 | 1680 58 | 01 | RING-SEAL |
| | |||
| 18 | 0243 18 | 01 |
SEAL 22,4X30-2
A005 WITHOUT ASBESTOS |
| | |||
| 20 | 1664 H1 | 01 | SPECIAL SCREW 4X70-8 |
| | |||
| 70 | 6932 38 | 02 | HEXAGONAL NUT 8X125-6,5 |
| | |||
| 71 | 6958 55 | 01 | SPRING WASHER 5X9,4-0,6 |
| | |||
| 72 | 6936 73 | 01 | SELF LOCKG NUT 5X80-5,4-8 |
