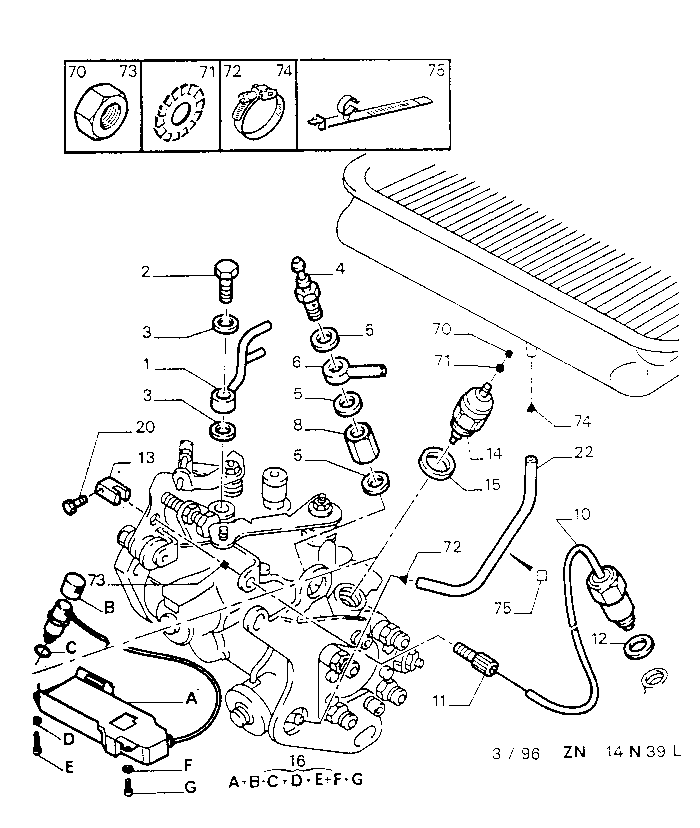

| GB | 405N 1 14N39L | INJECTION PUMP DETAIL ELECTRO VALVE |
TURBO DIESEL XUD9TE
| 01 | 1982 30 | 01 |
ADJUSTABL UNION 6,5X8
OUTLET |
 | |||
| 02 | 1563 87 | 01 | UNION SCREW DIAM 12 |
| | |||
| 03 | 0157 14 | 02 | PLUG SEAL DIAM 12,7X19-1,5 |
| | |||
| 04 | 1563 F0 | 01 | UNION-SCREW |
| | |||
| 05 | 1933 14 | 03 |
FUEL PIPE SEAL 12,1X18-2
C002 COPPER |
| | |||
| 06 | 1982 29 | 01 |
ADJUSTABL UNION 6,5X8
INLET |
| | |||
| 08 | 1982 31 | 01 | PUMP SPACER M10X1,25 |
| | |||
| 10 | 1647 52 | 01 | IDLE CONTROL 22X150-LG 431 |
| RP 1647 62 | 01 |
DAUPHIN THOMSON VERNET JA RED |
|
| | |||
| 11 | 1647 34 | 01 | ADJUSTMT SCREW |
| | |||
| 12 | 0243 18 | 01 |
SEAL 22,4X30-2
A005 WITHOUT ASBESTOS |
| | |||
| 13 | 1664 03 | 01 |
CABLE CLAMP
- DEPOL CEE 19-5 |
| | |||
| 1664 H3 | 01 |
- DEPOL CEE 95 |
|
| | |||
| 14 | 1680 85 | 01 | ELECTRO VALVE |
| | |||
| 15 | 1680 45 | 01 | RING-SEAL |
| | |||
| 16 | 1980 63 | 01 |
KIT
- DEPOL CEE 19-5 |
| | |||
| 1680 72 | 01 |
- DEPOL CEE 95 |
|
| | |||
| 20 | 1664 H1 | 01 | SPECIAL SCREW 4X70-8 |
| | |||
| 22 | 1573 NZ | 01 | FUEL FEED PIPE CL 7X13-5000 |
| | |||
| 70 | 6933 22 | 01 | HEXAGONAL NUT 5X80 |
| | |||
| 71 | 6958 55 | 01 | SPRING WASHER 5X9,4-0,6 |
| | |||
| 72 | 6981 36 | 01 | METALLIC CLAMP 12 A 20 |
| | |||
| 73 | 6933 19 | 01 | HEXAGONAL NUT 8X125-4 |
| | |||
| 74 | 6981 E1 | 02 | METALLIC CLAMP 8 A 16 LARG 5 |
| | |||
| 75 | 6995 E4 | 01 | STRAP L=342 LARG=7 |
