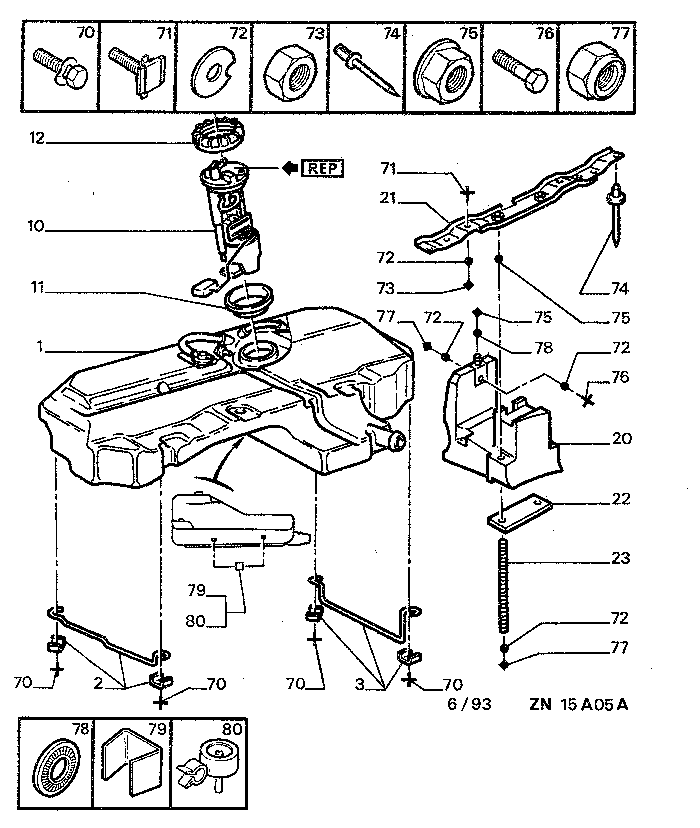

| GB | 405N 1 15A05A | FUEL TANK FUEL GAUGE |
| 01 | 1500 92 | 01 | FUEL TANK |
 | |||
| 02 | 1536 23 | 01 |
TANK CRADLE LEFT |
| | |||
| 03 | 1536 24 | 01 | RIGHT |
| | |||
| 10 | 1527 76 | 01 | GAUGE WITH PUMP |
| | |||
| 11 | 1528 23 | 01 | FUEL TANK SEAL |
| | |||
| 12 | 1531 09 | 01 | FUEL TANK RING |
| | |||
| 20 | 1537 29 | 01 | FUEL TANK STOP |
| | |||
| 21 | 1537 30 | 01 | BRACKET |
| | |||
| 22 | 1537 31 | 01 | FLANGE |
| | |||
| 23 | 1537 32 | 02 | STRUT |
| | |||
| 70 | 6923 16 | 04 | SELF-TAP SCREWS 8X125-35 |
| | |||
| 71 | 6984 03 | 02 | CAGE SCREW 6 X 100 - 20 |
| | |||
| 72 | 6947 77 | 05 | PLAIN WASHER 6X12-1,2 |
| | |||
| 73 | 6936 26 | 02 | HEXAGONAL NUT 6X100-5 |
| | |||
| 74 | 6973 29 | 02 | RIVET 4,8X8,7 |
| RP 6973 C1 | 01 |
A006 ALUMINIUM |
|
| | |||
| 75 | 6934 27 | 03 | WASHER-NUT 6X100-6,25-10 |
| | |||
| 76 | 6921 53 | 01 | CAPSCREW 6X100-35 |
| | |||
| 77 | 6939 04 | 01 | SELF LOCKG NUT 6X100-8 |
| | |||
| 78 | 6947 65 | 01 | RUBBER WASHER 8X38-6 |
| | |||
| 79 | 4754 13 | 02 | CLIP 1T 20 |
| | |||
| 80 | 6997 04 | 02 | CABLE CLIP DIAM 24 |
