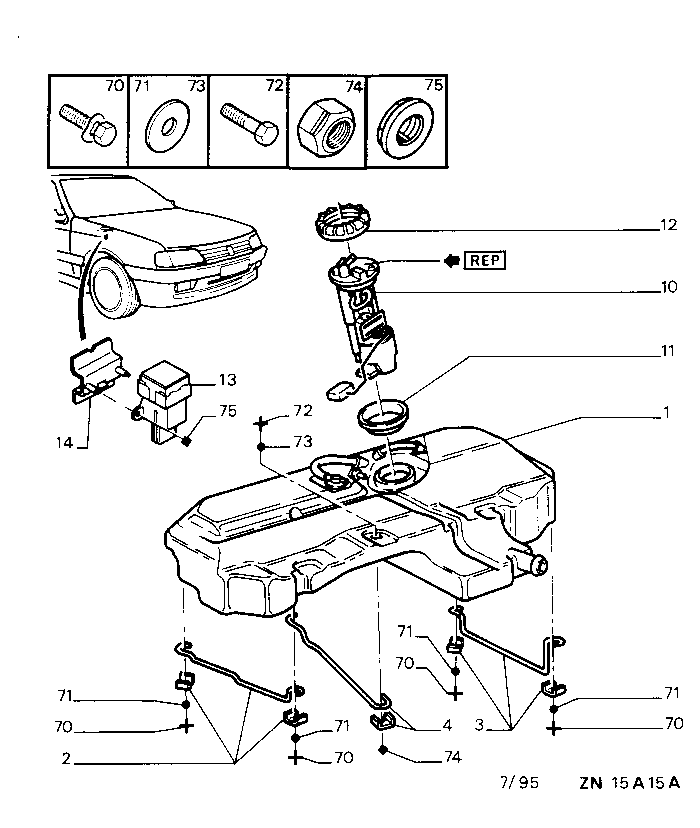

| GB | 405N 1 15A15A | FUEL TANK FUEL GAUGE |
| 01 | 1500 71 | 01 | FUEL TANK |
 | |||
| 02 | 1536 25 | 01 |
TANK CRADLE LEFT |
| | |||
| 03 | 1536 26 | 01 |
RIGHT |
| | |||
| 04 | 1536 29 | 01 | |
| | |||
| 10 | 1525 20 | 01 | GAUGE WITH PUMP |
| | |||
| 11 | 1528 23 | 01 | FUEL TANK SEAL |
| | |||
| 12 | 1531 09 | 01 | FUEL TANK RING |
| | |||
| 13 | 6366 54 | 01 | CONTACT SWITCH |
| | |||
| 14 | 6366 66 | 01 | SWITCH BRACKET |
| | |||
| 70 | 6922 70 | 04 | SELF-TAP SCREWS 7X100-35 |
| | |||
| 71 | 6948 34 | 04 | PLAIN WASHER 8X30-2 |
| | |||
| 72 | 6921 20 | 01 | CAPSCREW 8X125-60 |
| | |||
| 73 | 6947 06 | 01 | PLAIN WASHER 8X22-1,5 |
| | |||
| 74 | 6939 83 | 01 | SELF LOCKG NUT 8X125-7-13 |
| | |||
| 75 | 6936 48 | 02 | WASHER-NUT 5X80-6-15 |
