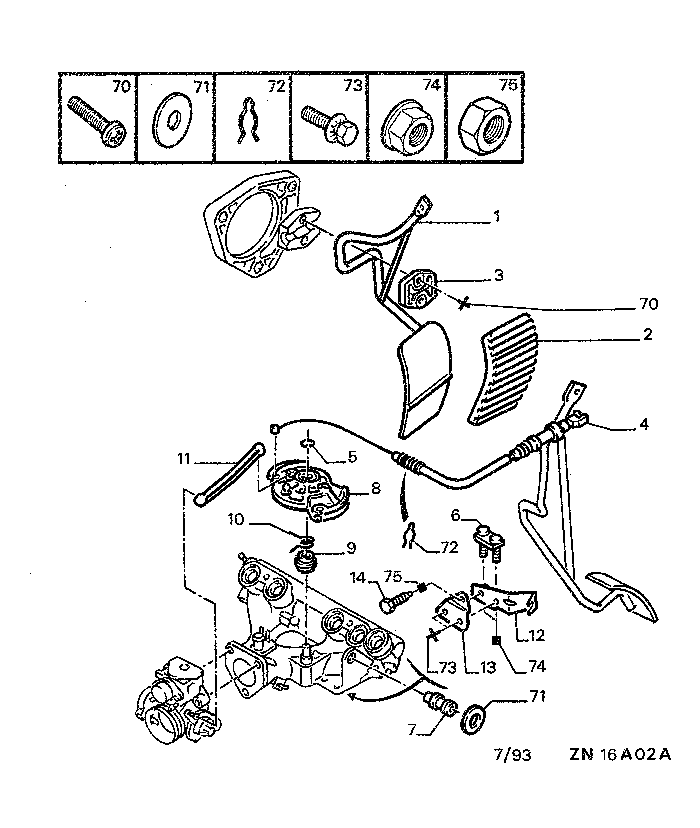

| GB | 405N 1 16A02A | ACCELERATOR CABLE AND PEDAL |
| 01 | 1601 A9 | 01 |
ACCELERAT PEDAL
- BVM |
 | |||
| 1601 C0 | 01 |
- BVA |
|
| | |||
| 03 | 1604 07 | 01 |
PEDAL COVER
- BVA |
| | |||
| 1614 24 | 01 | HALF-BEARING | |
| | |||
| 04 | 1629 C3 | 01 | CONTROL CABLE |
| | |||
| 05 | 1639 31 | 01 | RETAINING CLIP |
| | |||
| 06 | 1639 46 | 01 |
CABLE GUIDE
- BVA |
| | |||
| 07 | 1639 54 | 01 | GROMMET DIAM INT 12,6 |
| RP 1639 55 | 01 | ||
| | |||
| 08 | 1650 62 | 01 | ACCEL CTRL DRUM |
| | |||
| 09 | 1651 35 | 01 | SOCKET |
| | |||
| 10 | 1654 72 | 01 | CABLE SPRING |
| | |||
| 11 | 1648 39 | 01 | ACCEL DRUM LINK |
| | |||
| 12 | 1647 51 | 01 |
RETAINR BRACKET
- BVA |
| | |||
| 13 | 1647 54 | 01 |
BRACKET
- BVA |
| | |||
| 14 | 1652 18 | 01 |
ADJUSTMNT SCREW
- BVA |
| | |||
| 70 | 6924 10 | 02 | SCREW CBLX 4,5 X 20 |
| | |||
| 71 | 6947 27 | 01 | PLAIN WASHER 14X27-1,5 |
| | |||
| 72 | 6967 58 | 01 | ACLTR CABLE PIN 11X29 |
| | |||
| 73 | 6922 54 | 02 | SELF-TAP SCREWS 6 X 100 - 20 |
| | |||
| 74 | 6936 58 | 02 | NUT WITH BASE 6X100-10,5-22 |
| | |||
| 75 | 6934 04 | 01 | HEXAGONAL NUT 6X100-3 |
