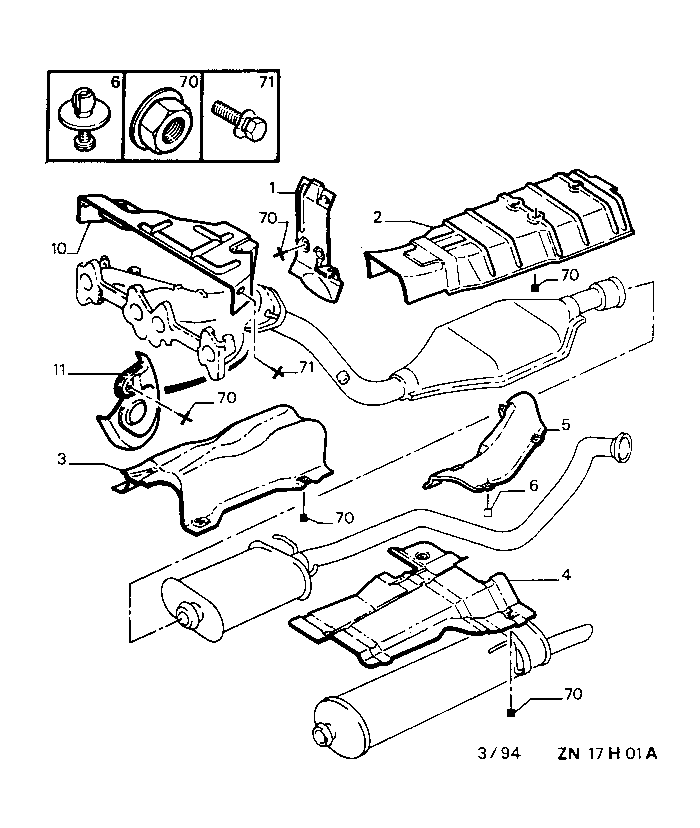

| GB | 405N 1 17H01A | EXHAUST SYSTEM HEAT SHIELD |
| 01 | 1723 19 | 01 | HEAT SHIELD |
 | |||
| 02 | 1723 20 | 01 | |
| | |||
| 03 | 1723 24 | 01 | |
| | |||
| 04 | 1723 58 | 01 |
- INJECTION XU10J2 UNDER REAR FLOOR |
| | |||
| 05 | 1537 26 | 01 |
- EXCEPT INJECTION XU10J2 FOR RESERVOIR |
| | |||
| 1537 38 | 01 |
- INJECTION XU10J2 FOR RESERVOIR |
|
| | |||
| 06 | 1539 16 | 04 | CLIP T 6,2 D 20 |
| | |||
| 10 | 1723 62 | 01 |
HEAT SHIELD
- INJECTION XU7JP - INJECTION XU10J2 - INJECTION XU5JP |
| | |||
| 11 | 1723 22 | 01 |
- INJECTION XU9J2 |
| | |||
| 70 | 6935 74 | 12 | WASHER-NUT 6 X 100 - 6,9 - 10 |
| | |||
| 71 | 6922 73 | 02 | SELF-TAP SCREWS 6X100-12 |
