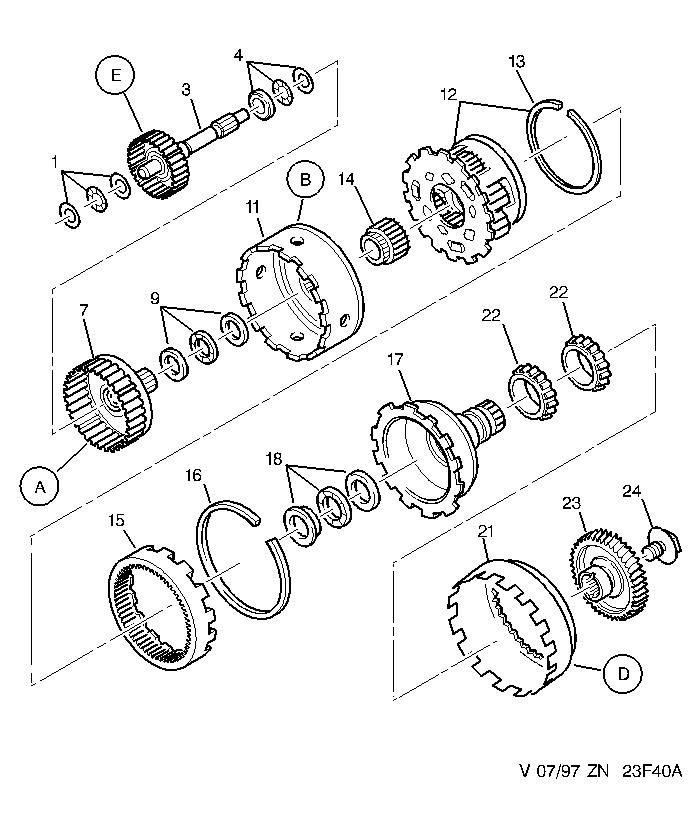

| GB | 405N 2 23F40A | EPICYCLIC TRAIN AND DRIVE |
UP TO 05/1994
| 01 | 2347 56 | 02 | NEEDLE BEARING 12X26-2 |
 | |||
| 03 | 2345 23 | 01 | MIDDLE SHAFT DIAM18-20DTS ET36DTS |
| | |||
| 04 | 2347 55 | 01 | NEEDLE BEARING 18X36-2,5 |
| | |||
| 07 | 2345 15 | 01 | PLANET SHAFT DIAM INT 18 |
| | |||
| 09 | 2347 53 | 01 |
NEEDLE BEARING 25,4X39,6-1,9 - CARBURETTOR XU52C - CARBURETTOR XU92C - INJECTION XU5M |
| | |||
| 2347 54 | 01 |
25,4X39,2-2,5
- INJECTION XU7JP - INJECTION XU10J2 |
|
| | |||
| 11 | 2349 04 | 01 | SHAFT CLUTCH 152 - 61 |
| | |||
| 12 | 2341 24 | 01 | EPICYCLIC GEAR |
| | |||
| 13 | 2313 90 | 01 | PISTON RING 95X100-2,2 |
| | |||
| 14 | 2346 20 | 01 | DRIVING-PINION 29 DTS |
| | |||
| 15 | 2341 25 | 01 | CROWN-WHEEL 82 DTS |
| | |||
| 16 | 2310 49 | 01 | STOP RING 121 - 1,5 |
| | |||
| 17 | 2351 32 | 01 | OUTPUT SHAFT |
| | |||
| 18 | 2347 57 | 01 | NEEDLE BEARING 28,5X44,4-1,5 |
| | |||
| 21 | 2349 03 | 01 | SHAFT CLUTCH 135 X 41 |
| | |||
| 22 | 2358 39 | 02 | AGB BEARING 38-17 |
| | |||
| 23 | 2387 12 | 01 |
PINIONS SET PM46 DTS ET PR53 DTS - CARBURETTOR XU52C - CARBURETTOR XU92C LOW COMP RATIO - INJECTION XU5M - INJECTION XU5JP - INJECTION XU7JP |
| | |||
| 2387 13 | 01 |
PM49 DTS ET PR51 DTS
- CARBURETTOR XU92C DEPOL 15-04 - INJECTION XU9J2 - INJECTION XU10J2 |
|
| | |||
| 24 | 2385 16 | 01 | SCREW 14X150-24 |
