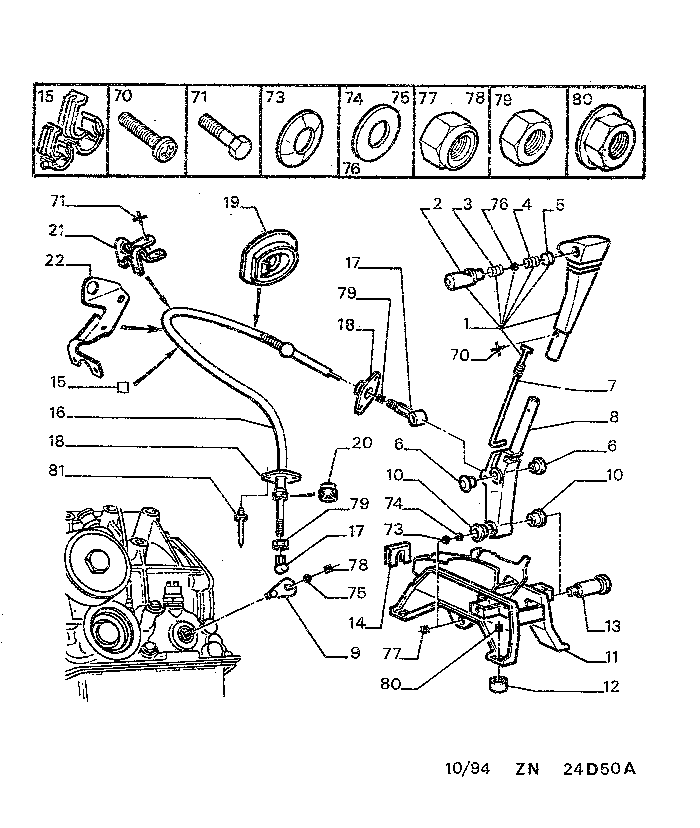

| GB | 405N 2 24D50A | AUTOMATIC GEARBOX CONTROL LEVER |
| 01 | 2403 79 | 01 |
LEVER HANDLE
- LEFT HAND DRIVE |
 | |||
| 2403 80 | 01 |
- RIGHT HAND DRIVE |
|
| | |||
| 02 | 2410 32 | 01 | LEVER PISTON |
| RP 2410 39 | 01 |
- LEFT HAND DRIVE |
|
| | |||
| 2410 33 | 01 |
- RIGHT HAND DRIVE |
|
| | |||
| 03 | 2410 45 | 01 | LEVER SPRING |
| | |||
| 04 | 2410 34 | 01 | INT |
| | |||
| 05 | 2450 45 | 01 | LEVER PLUG |
| | |||
| 06 | 2450 41 | 02 | PUSH PLUG |
| | |||
| 07 | 2400 47 | 01 | LEVER LINK |
| | |||
| 08 | 2400 46 | 01 | CONTROL LEVER |
| | |||
| 09 | 2435 67 | 01 | |
| | |||
| 10 | 2450 40 | 02 | BEARING BUSH |
| | |||
| 11 | 2408 41 | 01 | CONTROL BRACKET |
| | |||
| 12 | 2404 15 | 04 | LEVER SPACER |
| | |||
| 13 | 2455 30 | 01 | LEVER SPINDLE |
| | |||
| 14 | 6995 13 | 01 |
CLIP
RAPID PR 103914 |
| | |||
| 15 | 6467 27 | 01 | DIAM 13-28 |
| | |||
| 16 | 2444 K8 | 01 |
CONTROL CABLE
BOWDEN 32 1 198 |
| | |||
| 17 | 2454 A4 | 02 | CONTRL BALL END DIAM 5X0,80-39 |
| | |||
| 18 | 2445 18 | 02 | BALL-JOINT |
| | |||
| 19 | 2407 55 | 01 | PASSAGE SEAL |
| | |||
| 20 | 2447 05 | 01 | NUT |
| | |||
| 21 | 2437 15 | 01 | STOP LUG |
| | |||
| 22 | 2437 16 | 01 | RETAINR BRACKET |
| | |||
| 70 | 6912 70 | 02 | SCREW CBX 4X70-5,8 |
| | |||
| 71 | 6924 93 | 02 | CAPSCREW 8X125-20 |
| | |||
| 73 | 6962 31 | 01 | FLEXIBLE WASHER 10X18,2-0,8 |
| | |||
| 74 | 6946 67 | 01 |
PLAIN WASHER 10X20-1 |
| | |||
| 75 | 6947 78 | 02 |
8X16-1,5 |
| | |||
| 76 | 6948 10 | 01 | 4X14-1,5 |
| | |||
| 77 | 6939 04 | 01 |
SELF LOCKG NUT 6X100-8 |
| | |||
| 78 | 6935 63 | 01 | 8X100-7,5-13 |
| | |||
| 79 | 6932 28 | 01 | HEXAGONAL NUT 10X100-5 |
| | |||
| 80 | 6935 08 | 04 | NUT WITH BASE 6X100-5-12,2 |
| | |||
| 81 | 6973 28 | 02 | RIVET 4,8X12 |
| RP 6973 C3 | 01 |
A006 ALUMINIUM |
|
