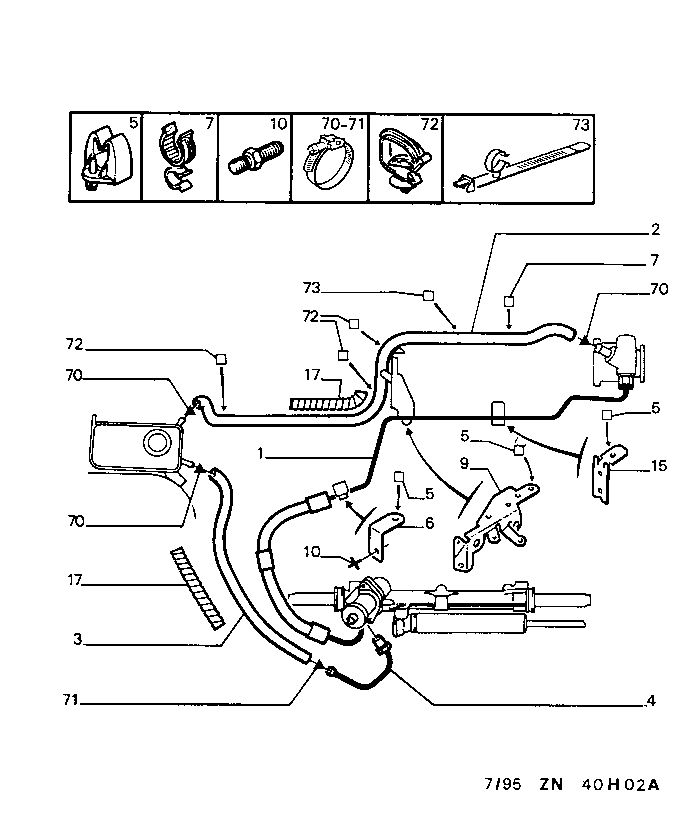

| GB | 405N 4 40H02A | HP/BP PIPING |
| 01 | 4020 1H | 01 |
HIGH PRES FLEXB
ANOFLEX 750530353 - INJECTION XU5M - INJECTION XU9J2 |
 | |||
| 4020 Z6 | 01 |
HIGH PRESS PIPE
ANOFLEX 750530350 - INJECTION XU5JP |
|
| | |||
| 02 | 4020 X2 | 01 | LOW PRESS PIPE |
| | |||
| 03 | 4020 G0 | 01 | |
| | |||
| 04 | 4020 F9 | 01 | UNION P A S |
| | |||
| 05 | 4018 38 | 03 | CLIP 1T 10 |
| | |||
| 06 | 4018 34 | 01 |
STRG PIPE CLAMP
- BVM |
| | |||
| 4021 07 | 01 |
LINE BRACKET
- BVA |
|
| | |||
| 07 | 4018 37 | 01 | SWIVEL CLIP |
| | |||
| 09 | 6500 66 | 01 | BRACKET |
| | |||
| 10 | 1737 02 | 01 | STUD |
| | |||
| 15 | 4018 67 | 01 | STRG PIPE CLAMP |
| | |||
| 17 | 4020 Z7 | 02 | PROTECT SLEEVE |
| | |||
| 70 | 6981 37 | 04 |
METALLIC CLAMP 16 A 27 |
| | |||
| 71 | 6981 36 | 01 | 12 A 20 |
| | |||
| 72 | 6995 10 | 03 | CLIP DIAM 15-22 |
| | |||
| 73 | 6997 61 | 01 |
STRAP L=342
- INJECTION XU5JP |
