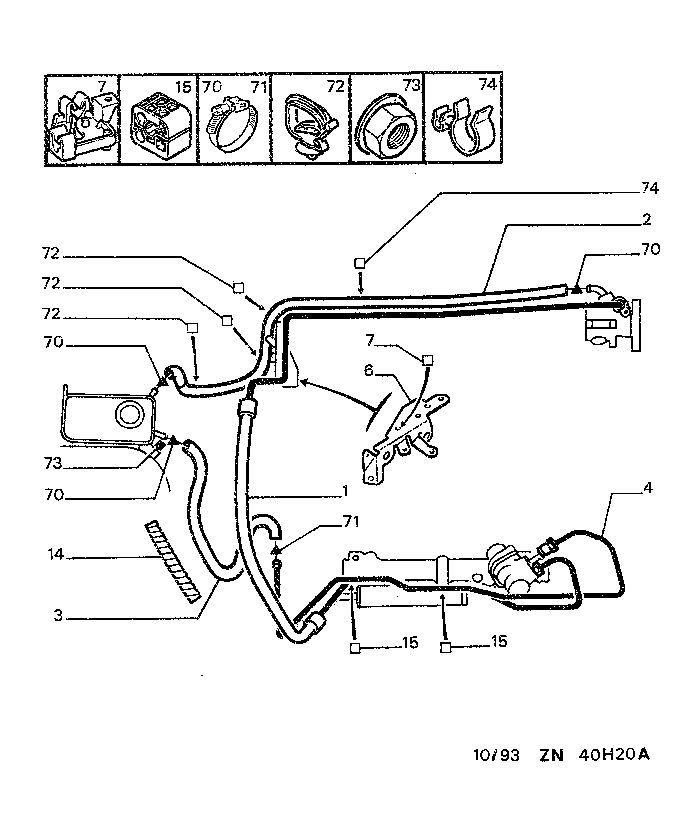

| GB | 405N 4 40H20A | HP/BP PIPING |
| 01 | 4020 X6 | 01 |
HIGH PRESS PIPE
ANOFLEX 750530347 - INJECTION XU7JP - INJECTION XU10J2 UP TO 09/1993 |
 | |||
| 4020 6N | 01 |
VINCKE CALLE V - INJECTION XU10J2 SINCE 09/1993 |
|
| | |||
| 02 | 4020 5H | 01 | LOW PRESS PIPE |
| | |||
| 03 | 4020 G0 | 01 | |
| | |||
| 04 | 4020 Y3 | 01 | |
| | |||
| 06 | 6500 66 | 01 | BRACKET |
| | |||
| 07 | 4020 Y1 | 01 | CLIP |
| | |||
| 14 | 4020 Z7 | 01 | PROTECT SLEEVE |
| | |||
| 15 | 1565 E0 | 02 | SUPPORT CLIP 2 DIAM 8 - 2 DIAM 10 |
| | |||
| 70 | 6981 37 | 02 |
METALLIC CLAMP 16 A 27 |
| | |||
| 71 | 6981 36 | 04 | 12 A 20 |
| | |||
| 72 | 6995 10 | 03 | CLIP DIAM 15-22 |
| | |||
| 73 | 6936 33 | 01 | NUT WITH BASE 6X100-8-13 |
| | |||
| 74 | 6992 R4 | 02 | SWIVEL CLIP DIAM 10-20 |
