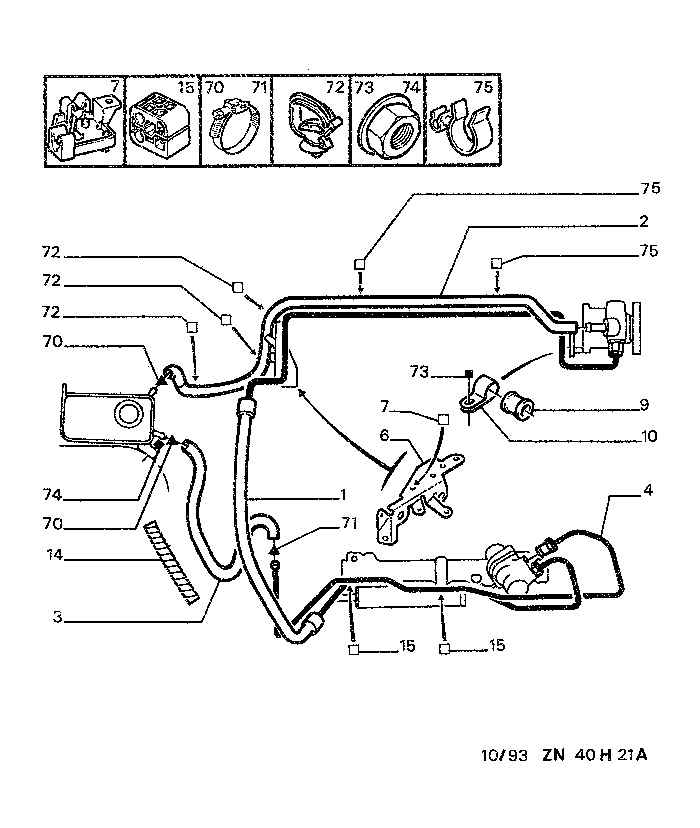

| GB | 405N 4 40H21A | HP/BP PIPING |
| 01 | 4020 X7 | 01 |
HIGH PRESS PIPE
ANOFLEX 750530366 UP TO 09/1993 |
 | |||
| 4020 9N | 01 |
VINCKE CALLE V SINCE 09/1993 |
|
| | |||
| 02 | 4020 Z1 | 01 | LOW PRESS PIPE |
| | |||
| 03 | 4020 G0 | 01 | |
| | |||
| 04 | 4020 Y3 | 01 | |
| | |||
| 06 | 6500 66 | 01 | BRACKET |
| | |||
| 07 | 4020 Y1 | 01 | CLIP |
| | |||
| 09 | 4020 X3 | 01 | TUBE RING |
| | |||
| 10 | 4018 68 | 01 | LINE BRACKET |
| | |||
| 14 | 4020 Z7 | 01 | PROTECT SLEEVE |
| | |||
| 15 | 1565 E0 | 02 | SUPPORT CLIP 2 DIAM 8 - 2 DIAM 10 |
| | |||
| 70 | 6981 37 | 02 |
METALLIC CLAMP 16 A 27 |
| | |||
| 71 | 6981 36 | 04 | 12 A 20 |
| | |||
| 72 | 6995 10 | 03 | CLIP DIAM 15-22 |
| | |||
| 73 | 6935 09 | 01 |
NUT WITH BASE 8 X 125 - 7,3 - 13 |
| | |||
| 74 | 6936 33 | 01 | 6X100-8-13 |
| | |||
| 75 | 6992 R4 | 02 | SWIVEL CLIP DIAM 10-20 |
