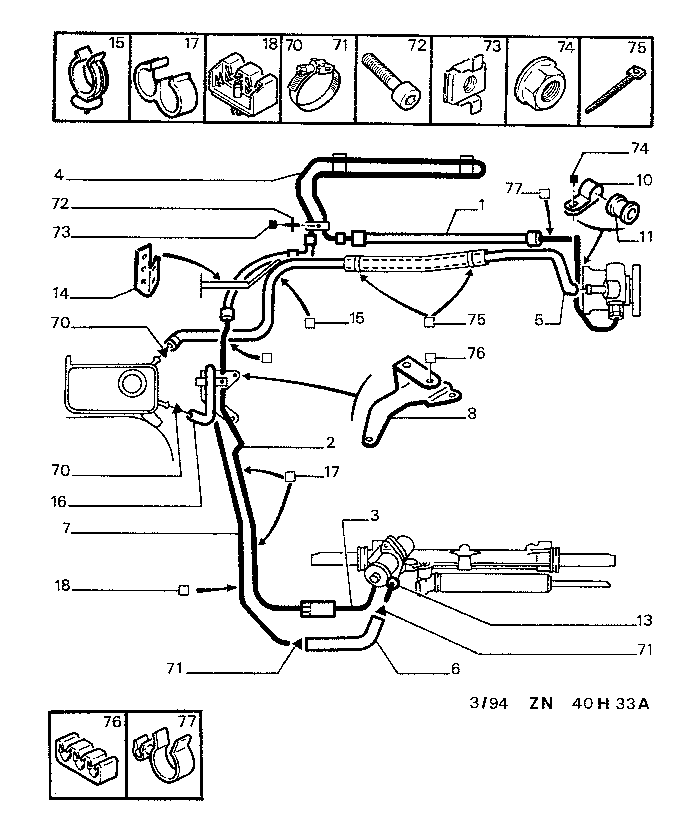

GB   405N 4 40H33A HP/BP PIPING

TURBO INJECTION XU10J4TE AIR CONDITIONING

01 4020 0G 01 HIGH PRESS PIPE ANOFLEX 750530362 02 4020 2X 01 03 4020 3X 01 04 4020 2G 01 05 4020 X8 01 LOW PRESS PIPE 06 4020 7F 01 07 4020 6F 01 08 6457 N5 01 BRACKET 10 4018 68 01 LINE BRACKET 11 4020 X3 01 TUBE RING 13 4020 55 01 UNION P A S 14 4020 2F 01 PIPES STRAP 15 4020 3F 01 LINE BRACKET 16 4020 6K 01 LOW PRESS PIPE 17 6992 W0 02 LINE BRACKET DIAM 10-12 18 4018 42 02 CLIP 35X20-10-10 70 6981 83 01 METALLIC CLAMP DIAM 16-27 LARG 9 71 6981 36 04 12 A 20 72 6913 15 01 SOCKET SCREW 6X100-12 73 6941 71 01 CAGED NUT 6X100-20,4-14-6,6 74 6935 09 01 NUT WITH BASE 8 X 125 - 7,3 - 13 75 6980 32 01 STRAP L=427 LARG=8 76 6995 92 01 SUPPORT CLIP DIAM 8-10-8 RAYMOND 77 6992 R4 01 SWIVEL CLIP DIAM 10-20
