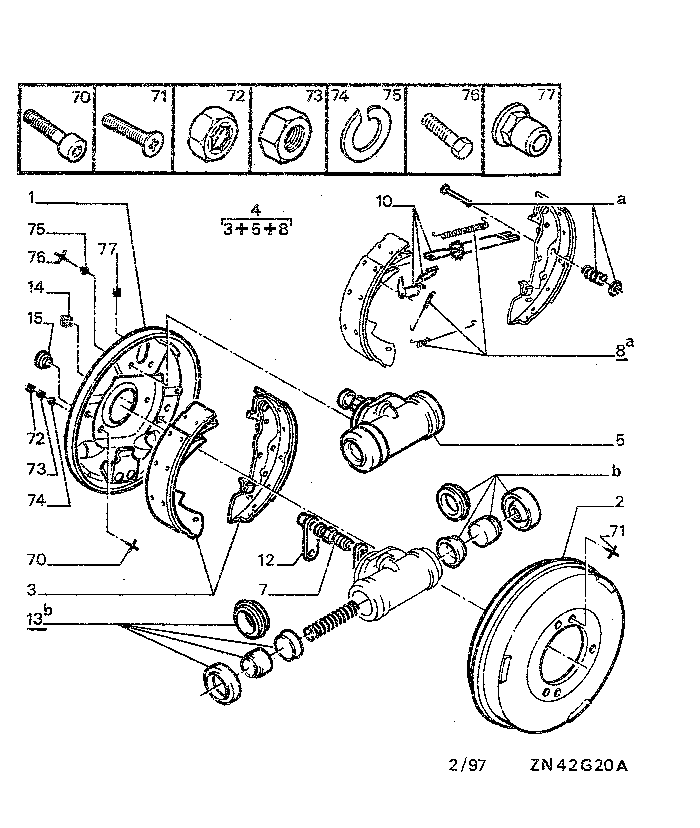

| GB | 405N 4 42G20A | REAR BRAKE DRUM CALIPER CYL SHOE |
REAR DRUMS ABR ADDITIONAL
| 01 | 4211 68 | 01 |
BRAKE PLATE LEFT |
 | |||
| 4212 68 | 01 | RIGHT | |
| | |||
| 02 | 4247 24 | 02 | BRAKE DRUM |
| | |||
| 03 | 4241 56 | 01 |
SET 4 BRAK SHOE
GIRLING A005 WITHOUT ASBESTOS |
| | |||
| 04 | 4241 2M | 01 | BRAKE KIT PRO |
| RP 4241 7J | 01 |
GIRLING A005 WITHOUT ASBESTOS |
|
| | |||
| 05 | 4402 62 | 02 | WHEEL CYLINDER DIAM 20,6 |
| | |||
| 07 | 4428 09 | 02 | DRAIN SCREW |
| | |||
| 08 | 4308 45 | 01 | SHOE SPRING SET 228X40 |
| | |||
| 10 | 4310 63 | 01 | SHOE ADJUS PART |
| | |||
| 12 | 4430 04 | 02 | BLEED SCREW CAP |
| | |||
| 13 | 4449 42 | 02 | BRAKE CYL KIT DIAM 20,60 |
| | |||
| 14 | 4223 03 | 02 | BRAK PLATE PLUG |
| | |||
| 15 | 4223 05 | 02 | |
| | |||
| 70 | 6913 E1 | 06 | SOCKET SCREW 10X150-25 |
| | |||
| 71 | 6905 36 | 04 | CAPSCREW 6X100-14 |
| | |||
| 72 | 6935 91 | 08 | SELF LOCKG NUT 10X150-4-17 |
| | |||
| 73 | 6932 57 | 08 | HEXAGONAL NUT 10X1,50 |
| | |||
| 74 | 6953 07 | 08 |
SPRING WASHER 10X18-2,5 |
| | |||
| 75 | 6953 04 | 01 | 6X12-1,8 |
| | |||
| 76 | 6915 84 | 01 | CAPSCREW 6X100-12 |
| | |||
| 77 | 6941 98 | 02 | PRESSURE NUT 6X100-16-13 |
