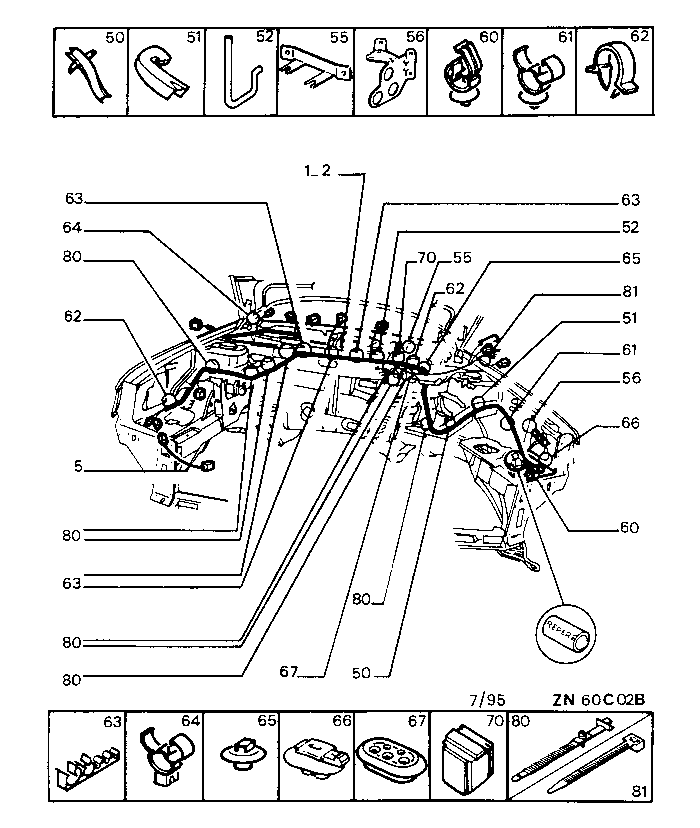

| GB | 405N 6 60C02B | MAIN WIRING UNDER BONNET |
SINCE MOD 1994
| 01 | 6502 JK | 01 |
MAIN HARNESS
MARK 9618966580 9618966680 9618966780 9618966880 9618967680 - LEVEL 1 WITHOUT AIR CONDITIONING WITHOUT SPEED CONTROL W/O HEADLAMP WIPER WITHOUT THEFT PROTECTION ALARM UP TO 06/1995 - LEVEL 2 WITHOUT AIR CONDITIONING WITHOUT SPEED CONTROL W/O HEADLAMP WIPER WITHOUT THEFT PROTECTION ALARM UP TO 06/1995 |
 | |||
| 6502 2J | 01 |
MARK 9623408780 - LEVEL 1 WITHOUT AIR CONDITIONING WITHOUT SPEED CONTROL W/O HEADLAMP WIPER WITHOUT THEFT PROTECTION ALARM SINCE S 71407639 - LEVEL 2 WITHOUT AIR CONDITIONING WITHOUT SPEED CONTROL W/O HEADLAMP WIPER WITHOUT THEFT PROTECTION ALARM SINCE S 71407639 |
|
| | |||
| 02 | 6502 JH | 01 |
MARK 9618966280 9618966380 9618966480 - LEVEL 3 AIR CONDITIONING WITH SIMPLE REGULATION AIRCON/TEMP SPEED CONTROL HEADLAMP WASHWIPE ANTI-THEFT ALARM UP TO S 71201000 - LEVEL 4 AIR CONDITIONING WITH SIMPLE REGULATION AIRCON/TEMP SPEED CONTROL HEADLAMP WASHWIPE ANTI-THEFT ALARM UP TO S 71201000 |
| | |||
| 6502 ZT | 01 |
MARK 9621788880 9621788980 9621789080 - LEVEL 3 AIR CONDITIONING WITH SIMPLE REGULATION AIRCON/TEMP SPEED CONTROL HEADLAMP WASHWIPE ANTI-THEFT ALARM SINCE S 71201001 UP TO S 71407638 - LEVEL 4 AIR CONDITIONING WITH SIMPLE REGULATION AIRCON/TEMP SPEED CONTROL HEADLAMP WASHWIPE ANTI-THEFT ALARM SINCE S 71201001 UP TO S 71407638 |
|
| | |||
| 6502 2C | 01 |
MARK 9623408580 9623408680 - LEVEL 3 AIR CONDITIONING WITH SIMPLE REGULATION AIRCON/TEMP SPEED CONTROL HEADLAMP WASHWIPE ANTI-THEFT ALARM SINCE S 71407639 UP TO 06/1995 - LEVEL 4 AIR CONDITIONING WITH SIMPLE REGULATION AIRCON/TEMP SPEED CONTROL HEADLAMP WASHWIPE ANTI-THEFT ALARM SINCE S 71407639 UP TO 06/1995 |
|
| | |||
| 6507 F2 | 01 |
MARK 9624487480 9624487580 9624487780 - LEVEL 1 WITHOUT AIR CONDITIONING SPEED CONTROL HEADLAMP WASHWIPE ANTI-THEFT ALARM SINCE 06/1995 - LEVEL 2 WITHOUT AIR CONDITIONING SPEED CONTROL HEADLAMP WASHWIPE ANTI-THEFT ALARM SINCE 06/1995 - LEVEL 3 AIR CONDITIONING WITH SIMPLE REGULATION AIRCON/TEMP SPEED CONTROL HEADLAMP WASHWIPE ANTI-THEFT ALARM SINCE 06/1995 - LEVEL 4 AIR CONDITIONING WITH SIMPLE REGULATION AIRCON/TEMP SPEED CONTROL HEADLAMP WASHWIPE ANTI-THEFT ALARM SINCE 06/1995 |
|
| | |||
| 05 | 6544 4K | 01 |
SENSOR HARNESS TEMPERATURE
MARK 9623075280 |
| | |||
| 50 | 6555 Q8 | 01 | PROTECTOR |
| | |||
| 51 | 6555 Q9 | 01 | |
| | |||
| 52 | 6555 V5 | 01 | |
| | |||
| 55 | 6555 Q7 | 01 | CONNECTR BRACKT |
| | |||
| 56 | 6555 R2 | 01 | |
| | |||
| 60 | 6992 A7 | 01 |
CLIP DIAM 13 |
| | |||
| 61 | 6992 H3 | 01 |
DIAM 11-18 RAYMOND |
| | |||
| 62 | 6986 81 | 03 |
DIAM 17 |
| | |||
| 63 | 6995 96 | 04 | DIAM 23-11-5,5 |
| | |||
| 64 | 6992 N2 | 01 |
HARNESS CLIP DIAM 19 |
| | |||
| 65 | 6995 A2 | 02 | |
| | |||
| 66 | 6555 N7 | 01 | CLIP 6X12--0,7-4 |
| | |||
| 67 | 6555 GP | 01 |
WIRING SHEATH 25,5X40,2
ITW |
| | |||
| 70 | 6555 R1 | 01 | PLUG |
| | |||
| 80 | 6980 47 | 07 | STRAP LONG 171 LARG 9 |
| | |||
| 81 | 6994 21 | 03 | BLADE BAG L=275 |
