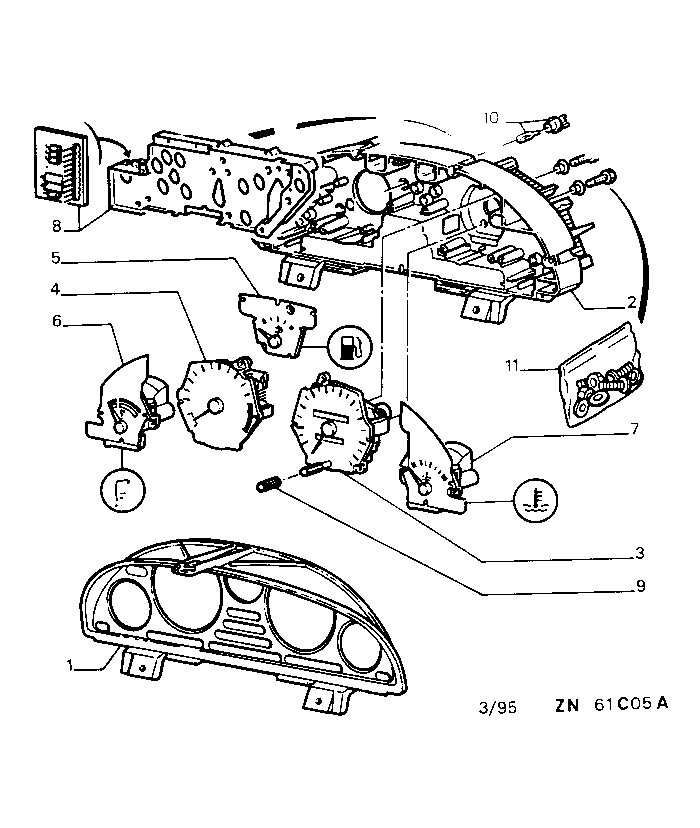

| GB | 405N 6 61C05A | INSTRUMENT CLUSTER DETAILS |
5 ITEMS EQUIPMENT W/O OIL TEMP
|
A) USED FOR 200 AND 220 KMS/H B) USED FOR 130 AND 140 MPH |
|||
| 01 | 6102 40 | 01 |
INSTRUMT VISOR
JAEGER |
 | |||
| 02 | 6113 P4 | 01 |
CLUSTER HOUSING
- SPEEDOMETER CONTROL MECHANICAL |
| | |||
| 6113 FR | 01 |
- SPEEDOMETER CONTROL ELECTRICAL |
|
| | |||
| 03 | 6113 P7 | 01 |
SPEEDOMETER 240 KMS |
| | |||
| 6113 P9 | 01 | 150 MPH | |
| | |||
| 04 | 6113 Q1 | 01 |
REVLTN COUNTER 6800/8000 T - PETROL |
| | |||
| 6113 X4 | 01 |
PMH A AIMANT
- DIESEL FUEL + UP TO S 71030127; 591894 (1) |
|
| | |||
| 05 | 6132 09 | 01 |
GAUGE INDICATOR JAUGE CARBURANT WITHOUT DAMPING |
| | |||
| 6132 10 | 01 |
WITH DAMPING |
|
| | |||
| 06 | 6135 87 | 01 |
OIL TEMP GAUGE
OIL LEVEL |
| | |||
| 07 | 6135 86 | 01 |
TEMP GAUGE WTR
WATER TEMPERATURE |
| | |||
| 08 | 6113 Q5 | 01 | DIODE-BOX |
| | |||
| 09 | 6156 28 | 01 | CLOCK BUTTON DIAM 5,5 LONG 17 |
| | |||
| 10 | 6112 48 | 01 | BULB-HOLDER |
| | |||
| 11 | 6113 Y7 | 01 |
FIXING STUD
JAEGER |
