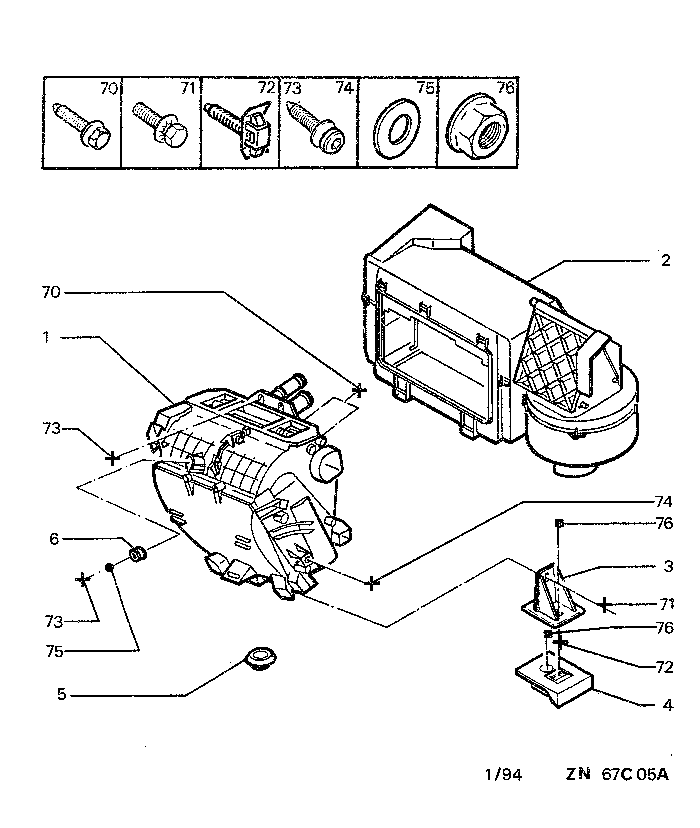

| GB | 405N 6 67C15A | HEATER DETAIL |
WITHOUT AIR CONDITIONING
| 01 | 6450 L7 | 01 |
HEATER HOUSING
- LEFT HAND DRIVE |
 | |||
| 6450 L8 | 01 |
- RIGHT HAND DRIVE |
|
| | |||
| 02 | 6450 L9 | 01 |
BLOWER HOUSING
- LEFT HAND DRIVE |
| | |||
| 6450 N0 | 01 |
- RIGHT HAND DRIVE |
|
| | |||
| 03 | 6453 J6 | 01 | BRACKET |
| | |||
| 04 | 6453 J7 | 01 | HEATER BRACKET |
| | |||
| 05 | 6454 26 | 01 | BULKHEAD PLUG DIAM 30 |
| | |||
| 06 | 6453 F4 | 01 | SPACER |
| | |||
| 70 | 6922 29 | 01 | SCREW WITH BASE 6X100-35 |
| | |||
| 71 | 6922 54 | 03 | SELF-TAP SCREWS 6 X 100 - 20 |
| | |||
| 72 | 8403 51 | 01 | CAGE SCREW |
| | |||
| 73 | 6912 A3 | 01 |
SCREW CBLX RDL 6X100-30 |
| RP 6910 A6 | 01 | ||
| | |||
| 74 | 6925 34 | 02 | 6X100-16 |
| | |||
| 75 | 6949 26 | 02 | PLAIN WASHER 6X34-1,5 |
| | |||
| 76 | 6936 91 | 02 | NUT WITH BASE 6 X 100 - 6 - 10 |
| RP 6936 A0 | 01 | ||
