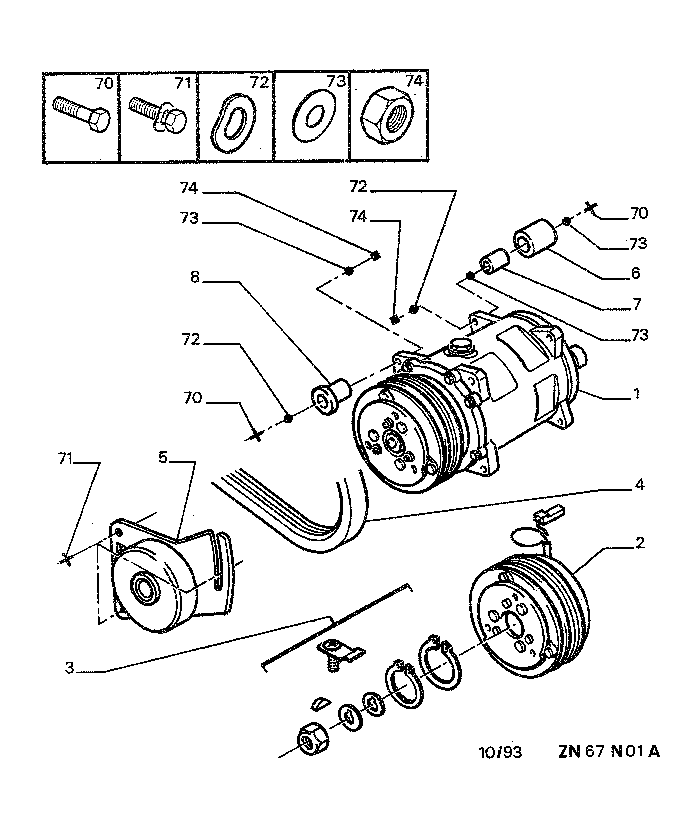

| GB | 405N 6 67N01A | AIR CONDITIONED COMPRESSOR DETAIL |
| 01 | 6453 K3 | 01 |
COMPRESSOR 4 VES
SANDEN INT- SD709A 7706 |
 | |||
| 02 | 6453 K7 | 01 |
COMPRESSOR CLUT 4 VES
SANDEN INT- FOR COMPRESSOR SD709A 7706 |
| | |||
| 03 | 6453 K8 | 01 | FIXING SET POUR SD709A |
| | |||
| 04 | 6453 L2 | 01 |
COMPRESSOR BELT 4 VOIES LON 840
KLEBER HUTCHINSON |
| | |||
| 05 | 6453 76 | 01 | TENSION ROLLER |
| | |||
| 06 | 6968 39 | 02 | PIN 20X20 |
| | |||
| 07 | 6453 N9 | 02 | FLEXIBLE PIN |
| | |||
| 08 | 6453 E7 | 02 | SUPPORT CUP INT 10,1X26-20,6 |
| | |||
| 70 | 6921 91 | 04 | CAPSCREW 10X150-55 |
| | |||
| 71 | 6923 78 | 03 | SELF-TAP SCREWS 8X125-25 |
| | |||
| 72 | 6962 11 | 04 | FLEXIBLE WASHER 10X21,3-1 |
| | |||
| 73 | 6949 09 | 06 | PLAIN WASHER 10X27-3,5 |
| | |||
| 74 | 6932 57 | 04 | HEXAGONAL NUT 10X1,50 |
