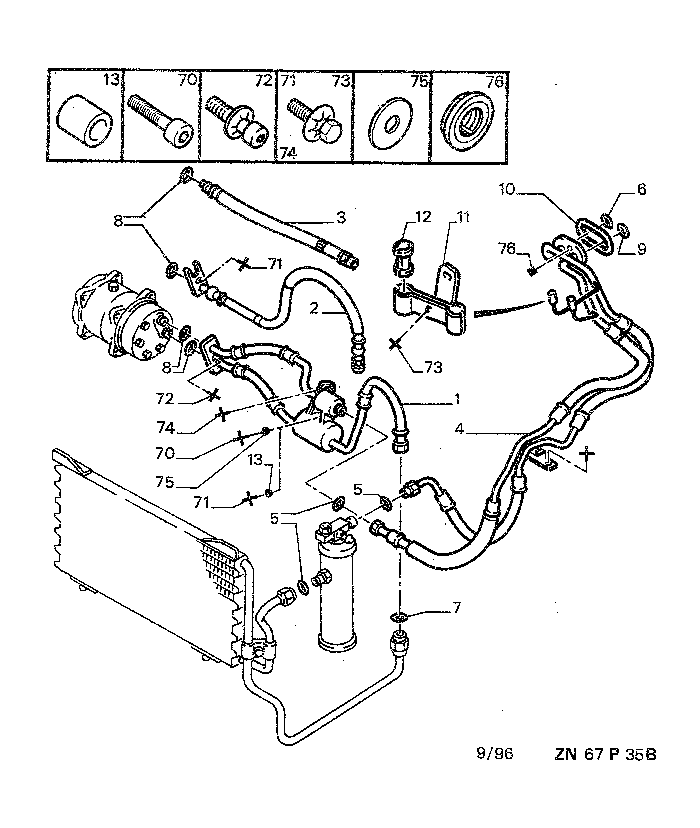

| GB | 405N 6 67P35B | FREON TUBE - FIXING |
| 01 | 6457 T0 | 01 |
FREON TUBE
UP TO O 6971 |
 | |||
| 02 | 6457 TX | 01 |
SINCE O 6972 |
| | |||
| 03 | 6457 TY | 01 |
SINCE O 6972 |
| | |||
| 04 | 6457 S7 | 01 |
- DIESEL XUD9 |
| | |||
| 6457 T1 | 01 |
- TURBO DIESEL XUD9TE |
|
| | |||
| 05 | 6457 R1 | 03 |
RING-SEAL DIAM INT 7,65 |
| | |||
| 06 | 6457 R3 | 01 |
DIAM INT 13,5 |
| | |||
| 07 | 6457 R2 | 01 |
DIAM INT 10,82 |
| | |||
| 08 | 6457 R5 | 02 |
DIAM INT 20,22 |
| | |||
| 09 | 6457 R4 | 01 | DIAM INT 16,5 |
| | |||
| 10 | 6457 K9 | 01 | RUBBER SEAL DIAM INT 68,5 EP 12 |
| | |||
| 11 | 6457 T2 | 01 |
PIPE BRACKET
- LEFT HAND DRIVE |
| | |||
| 6457 T3 | 01 |
- RIGHT HAND DRIVE |
|
| | |||
| 12 | 4018 76 | 02 | RUNNING RING |
| | |||
| 13 | 1281 14 | 01 |
ROLLER SPACER 8,5X20-19
SINCE O 7056 |
| | |||
| 70 | 6913 33 | 02 |
SOCKET SCREW 7X100-20
UP TO O 7055 |
| | |||
| 71 | 6922 85 | 01 |
SELF-TAP SCREWS 7X100-40
SINCE O 7056 |
| | |||
| 72 | 6913 H4 | 01 | SCREW 10X125-30 |
| | |||
| 73 | 6922 97 | 01 |
SELF-TAP SCREWS 6X100-20 |
| | |||
| 74 | 6922 80 | 01 | 6X100-25 |
| | |||
| 75 | 6946 46 | 02 | PLAIN WASHER 7X14-1,5 |
| | |||
| 76 | 6935 08 | 02 | NUT WITH BASE 6X100-5-12,2 |
